Prerequisites

• Meazure Learning will provide you with a set of unique URLs at the beginning of the installation call that will be used in the steps below.

Step 1: Creating a Developer Key

• In Canvas, click Admin → Developer Keys -> + Developer Key -> + LTI Key

• Fill out the following Key Settings:

  • Key Name: How the key will display on the Developer Keys Page

  • Redirect URIs: Tool Redirect URL from Meazure Learning

  • Title: How the tool will display on the Course Navigation Bar for students and instructors

  • Description: Cannot be blank

  • Target Link URI: Target URL from Meazure Learning

  • OpenID Connect Initiation URL: Initiate Login URL from Meazure Learning

  • JWK Method: JWK URL from Meazure Learning

• LTI Advantage Services: Enable All

• Custom Fields: lms_user_id=${Canvas.user.id} (required for scheduling exception functionality)

• Privacy Level: Public

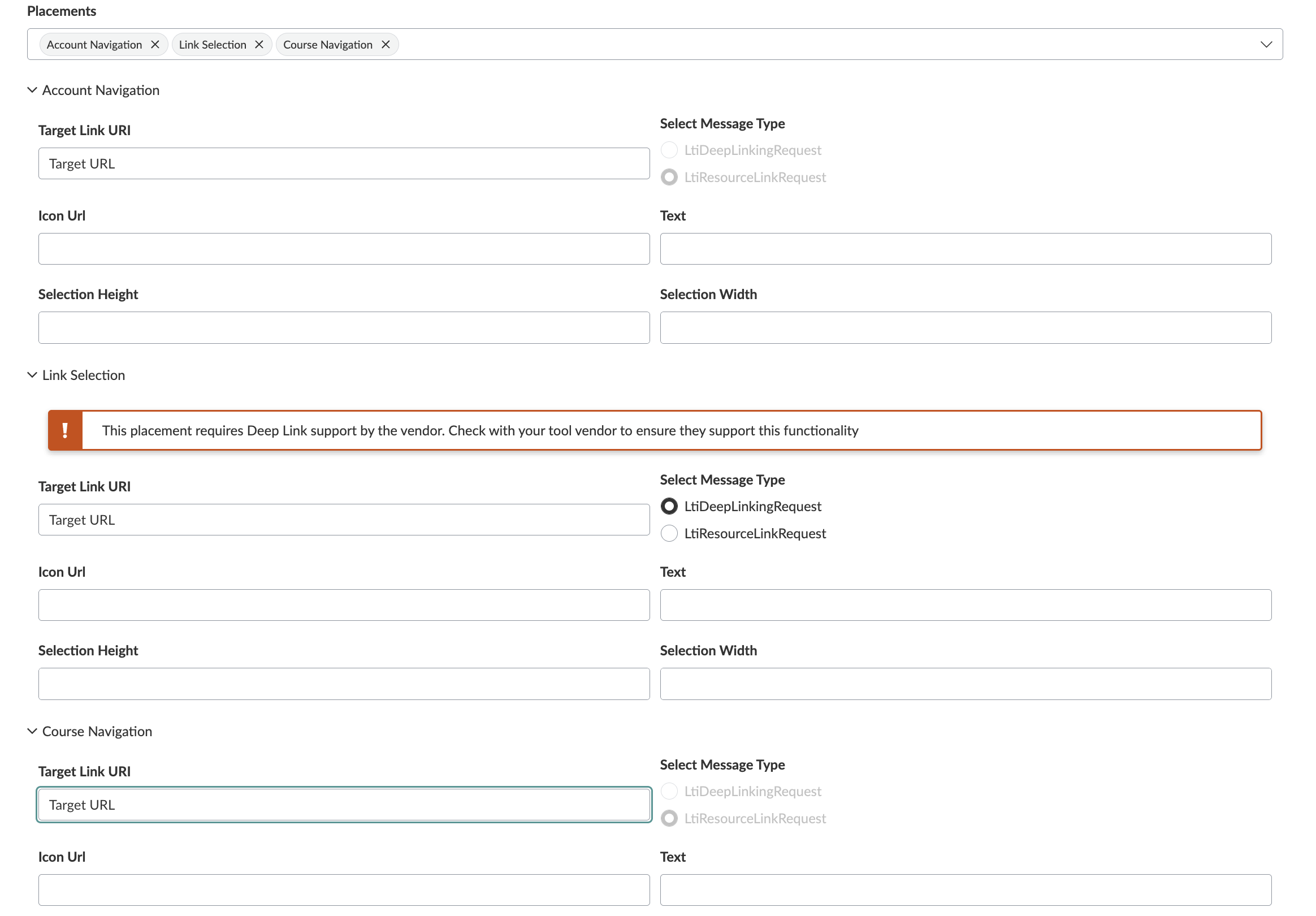

• Placements

  • Account Navigation: Add Target URL

  • Link Selection: Add Target URL, Select LTIDeepLinkingRequest

  • Course Navigation: Add Target URL

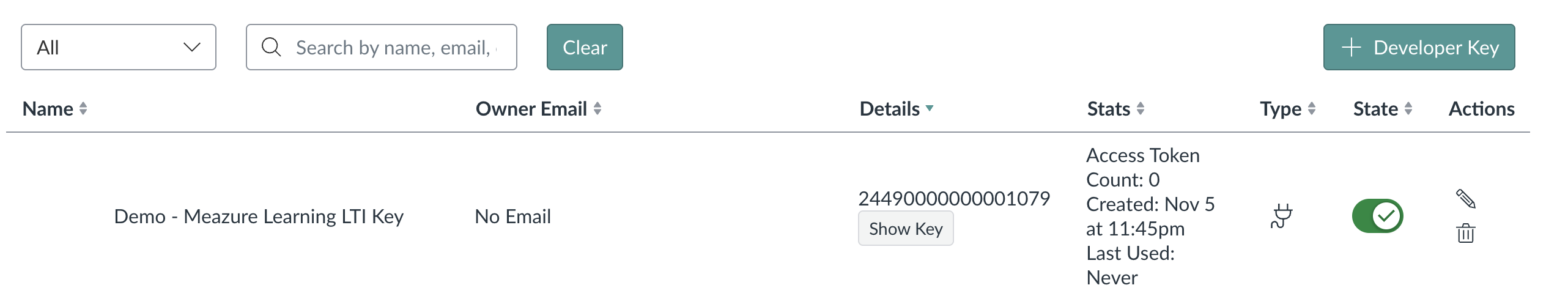

• Save Key

• Ensure key state is set to “on”

• Copy Client ID - it will be used for next step

Step 2: Creating an App

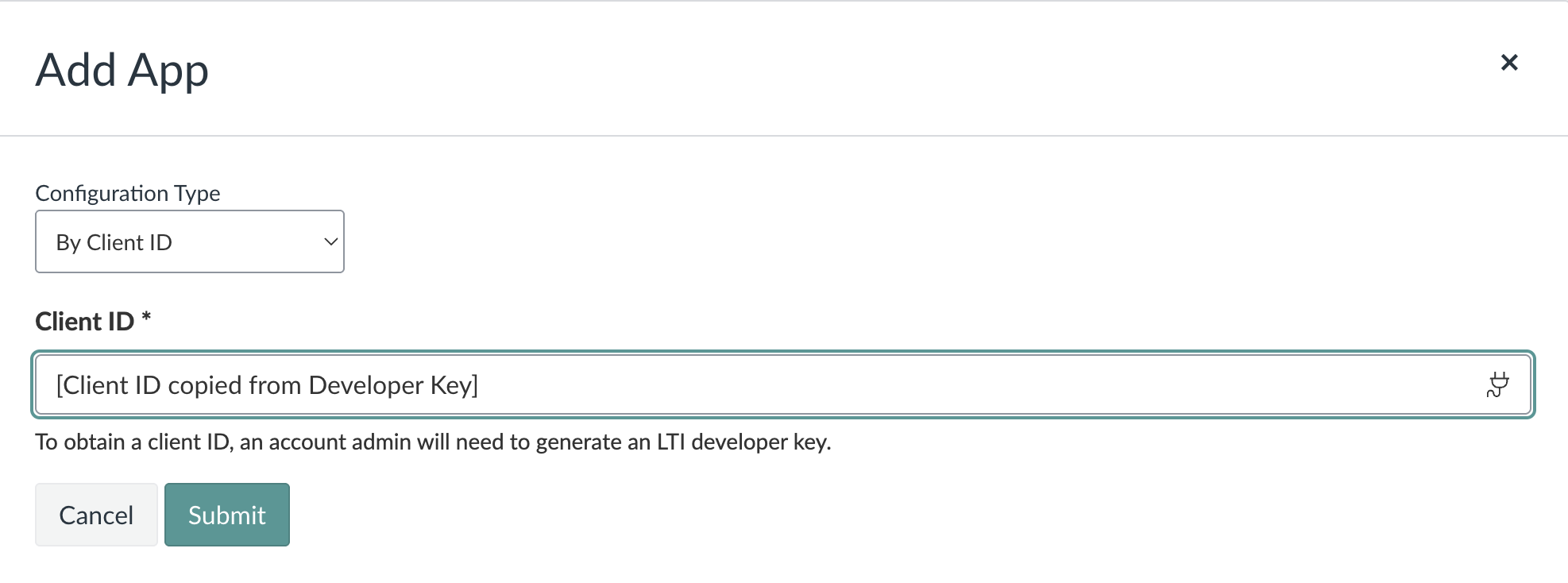

• In Canvas, click Admin -> Settings -> Apps -> View App Configuration -> + App

• Configuration Type: By Client ID

• Client ID: Client ID copied from previous step

• Send Client ID and Deployment ID to Meazure Learning

Step 3: Creating an API Key

• In Canvas, click Admin -> Developer Keys -> + Developer Key -> + API Key

• Key Name: How the key will display on the Developer Keys Page

• Redirect URIs: URL provided by Meazure Learning

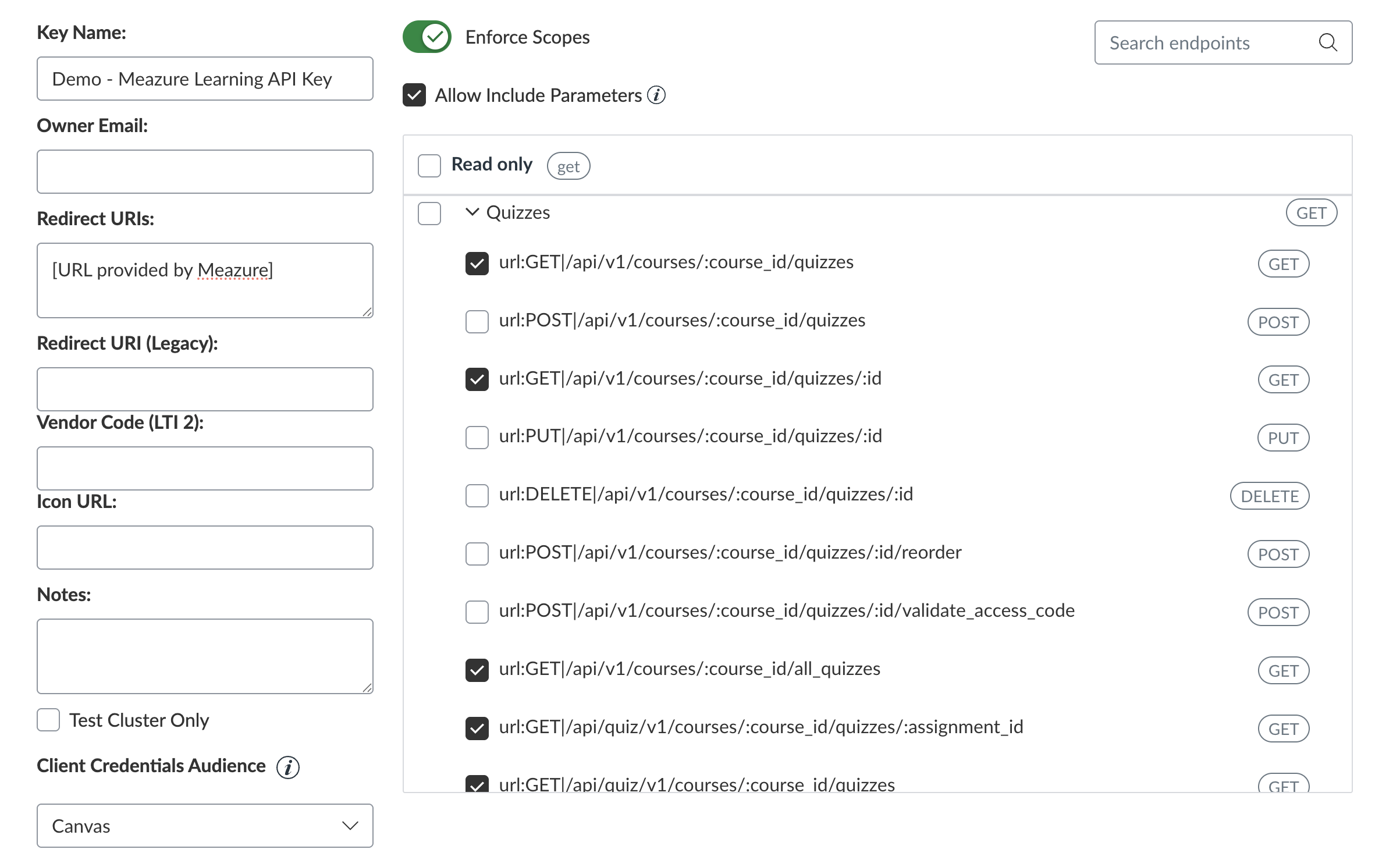

Enable Scopes

Quizzes

• url:GET|/api/v1/courses/:course_id/quizzes

• url:GET|/api/v1/courses/:course_id/all_quizzes

• url:GET|/api/quiz/v1/courses/:course_id/quizzes

• url:GET|/api/v1/courses/:course_id/quizzes/:id

• url:GET|/api/quiz/v1/courses/:course_id/quizzes/:assignment_id

Enrollments

• url:GET|/api/v1/courses/:course_id/enrollments

Courses

• url:GET|/api/v1/courses/:course_id/students

• url:GET|/api/v1/courses/:id

Assignments

• url:GET|/api/v1/courses/:course_id/assignments/:assignment_id/overrides

• url:GET|/api/v1/courses/:course_id/assignments/overrides

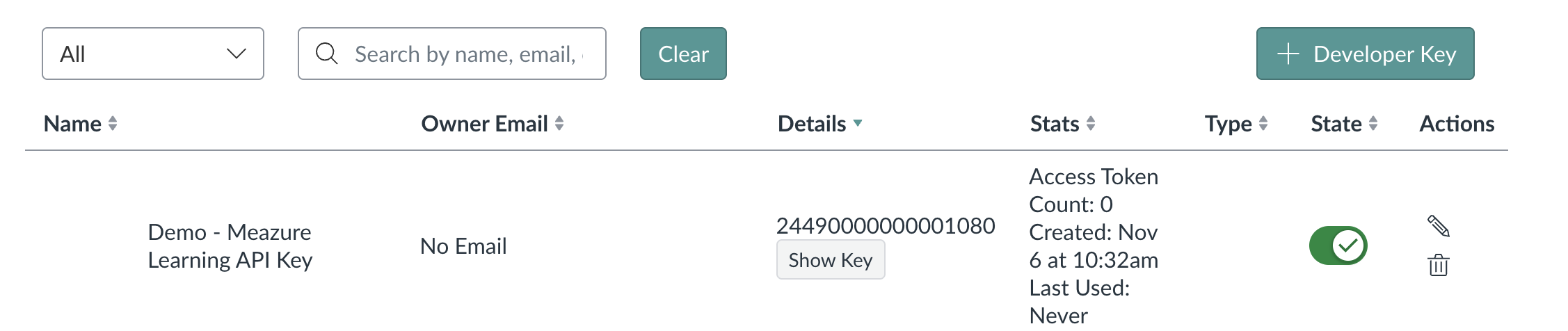

• Save Key

• Ensure key state is set to “on”

• Send Client ID and Client Secret to Meazure Learning
